钕铁硼磁铁

描述: 钕铁硼磁铁是当代磁性最强具有剩磁高、性能价格比最好的永磁材料。具有矫顽力高、磁能积高、性价比高等特点，易于加工成各种各样的形状，广泛应用于电机、传感器、仪表、电声、磁力分离器、汽车、航空、航天等领域。在潮湿的环境里易腐蚀，一般会根据客户的需求进行表面处理，涂层包括：镍、锌、金、银、环氧、帕利灵等

电话: +86 571 82839133

邮箱: info@smi-mag.com

产品编号 钕铁硼磁铁

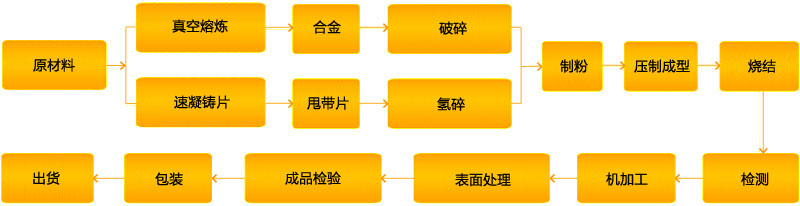

生产流程
磁性参数
物理特性

Grade	Br		Hcb		Hcj		(BH)max		Working Temp
Grade	mT	Gs	kA/m	Oe	kA/m	Oe	kJ/m3	MGOe	℃
N35	1180-1230	11800-12300	≥868	≥10900	≥955	≥12000	263-287	33-36	≤80
N38	1220-1280	12200-12800	≥899	≥11300	≥955	≥12000	287-310	36-39
N40	1260-1310	12600-13100	≥923	≥11600	≥955	≥12000	302-326	38-41
N42	1280-1340	12800-13400	≥923	≥11600	≥955	≥12000	318-342	40-43
N45	1320-1370	13200-13700	≥876	≥11000	≥955	≥12000	342-366	43-46
N48	1360-1420	13600-14200	≥836	≥10500	≥876	≥11000	358-390	45-48
N50	1390-1450	13900-14500	≥836	≥10500	≥876	≥11000	374-406	47-51
N52	1420-1480	14200-14800	≥796	≥10000	≥876	≥11000	390-422	49-53
N35M	1180-1230	11800-12300	≥868	≥10900	≥1114	≥14000	263-287	33-36	≤100
N38M	1220-1280	12200-12800	≥899	≥11300	≥1114	≥14000	287-310	36-39
N40M	1260-1310	12600-13100	≥923	≥11600	≥1114	≥14000	302-326	38-41
N42M	1280-1340	12800-13400	≥923	≥11600	≥1114	≥14000	318-342	40-43
N45M	1340-1390	13400-13900	≥876	≥11000	≥1114	≥14000	342-366	43-46
N48M	1360-1420	13600-14200	≥876	≥11000	≥1114	≥14000	366-390	46-49
N35H	1180-1230	11800-12300	≥868	≥10900	≥1353	≥17000	263-287	33-36	≤120
N38H	1220-1280	12200-12800	≥899	≥11300	≥1353	≥17000	287-310	36-39
N40H	1260-1310	12600-13100	≥923	≥11600	≥1353	≥17000	302-326	38-41
N42H	1280-1340	12800-13400	≥923	≥11600	≥1353	≥17000	318-342	40-43
N45H	1330-1390	13300-13900	≥923	≥11600	≥1353	≥17000	342-366	43-46
N48H	1360-1420	13600-14200	≥923	≥11600	≥1274	≥16000	366-390	46-49
N33SH	1140-1190	11400-11900	≥836	≥10500	≥1592	≥20000	247-270	31-34	≤150
N35SH	1180-1230	11800-12300	≥868	≥10900	≥1592	≥20000	263-287	33-36
N38SH	1220-1280	12200-12800	≥899	≥11300	≥1592	≥20000	287-310	36-39
N40SH	1260-1310	12600-13100	≥923	≥11600	≥1592	≥20000	302-326	38-41
N42SH	1280-1340	12800-13400	≥923	≥11600	≥1592	≥20000	318-342	40-43
N45SH	1330-1390	13300-13900	≥923	≥11600	≥1592	≥20000	342-366	43-46
N28UH	1030-1090	10300-10900	≥780	≥9800	≥1990	≥25000	207-231	26-29	≤180
N30UH	1090-1140	10900-11400	≥812	≥10200	≥1990	≥25000	223-247	28-31
N33UH	1130-1170	11300-11700	≥852	≥10700	≥1990	≥25000	247-263	31-33
N35UH	1180-1220	11800-12200	≥868	≥10900	≥1990	≥25000	263-287	33-36
N38UH	1220-1270	12200-12700	≥899	≥11300	≥1990	≥25000	287-310	36-39
N28EH	1030-1090	10300-10900	≥780	≥9800	≥2388	≥30000	207-231	26-29	≤200
N30EH	1080-1130	10800-11300	≥812	≥10200	≥2388	≥30000	223-247	28-31
N33EH	1130-1170	11300-11700	≥852	≥10700	≥2388	≥30000	247-263	31-33
N35EH	1180-1220	11800-12200	≥868	≥10900	≥2388	≥30000	263-287	33-36

Curie Temperature (°C)	310-370
Maximum Operating Temperature (°C)	80-240
Resistivity (μ ohm.cm)	160
Hardness (Hv)	560-580
Density (g/cm3)	7.40
Relative Recoil Permeability (μrec)	1.05
Saturation Field Strength, kOe (kA/m)	30-40 (2400-3200)
Temperature Coefficient of Br (%/°C)	-0.12 ~ -0.10
Temperature Coefficient of iHc (%/°C)	-0.6
